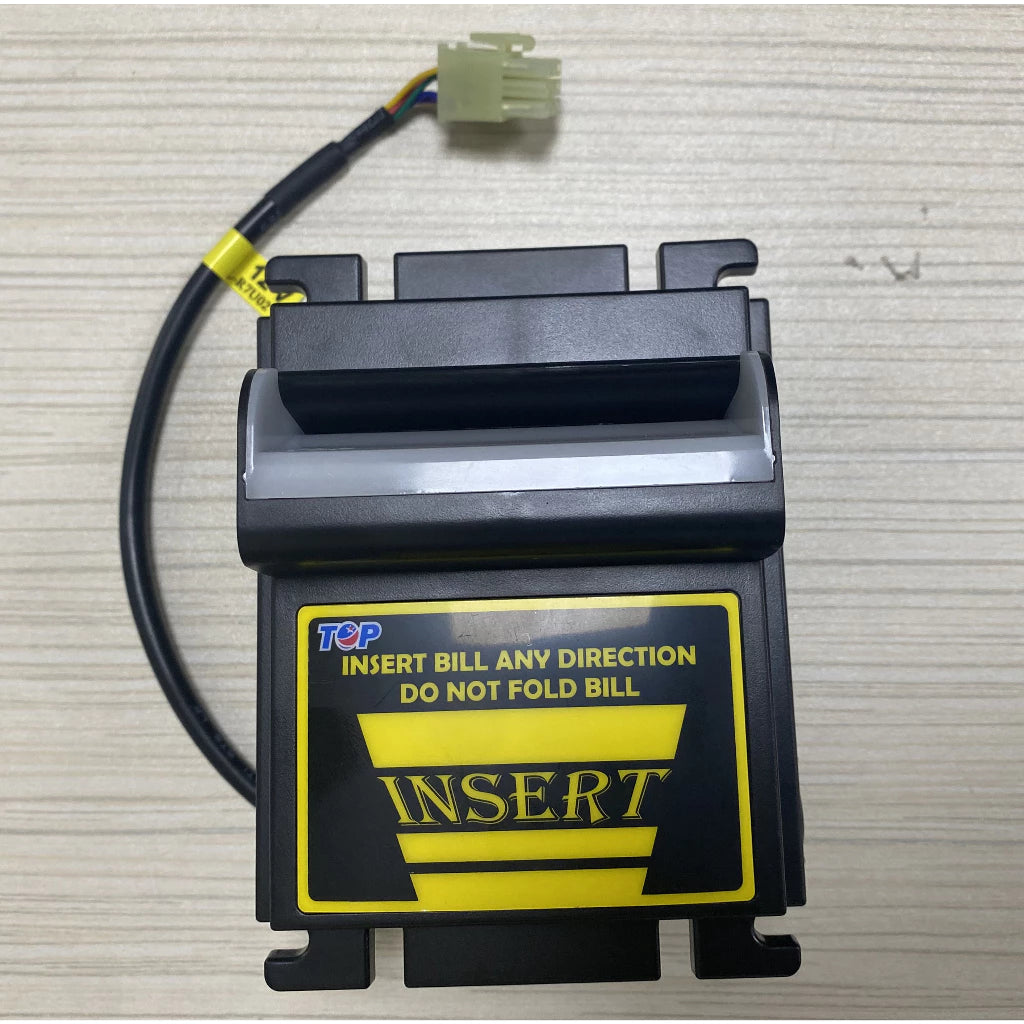

TB74 bill acceptor TOP brand Banknote bill Validator cash acceptor with free dafoxtech fast read ba wire

Product Description:

Already accepted new polymers for Philippine money bill 50,100,500& 1k peso bill

Important note:

Now the latest firmware for tb74/tb74b is ver.#6015 (tp70 is ver.#6014).

It can work with the new bill released.

Please prepare the flasher to update your currently older device.

And contact us for free firmware.

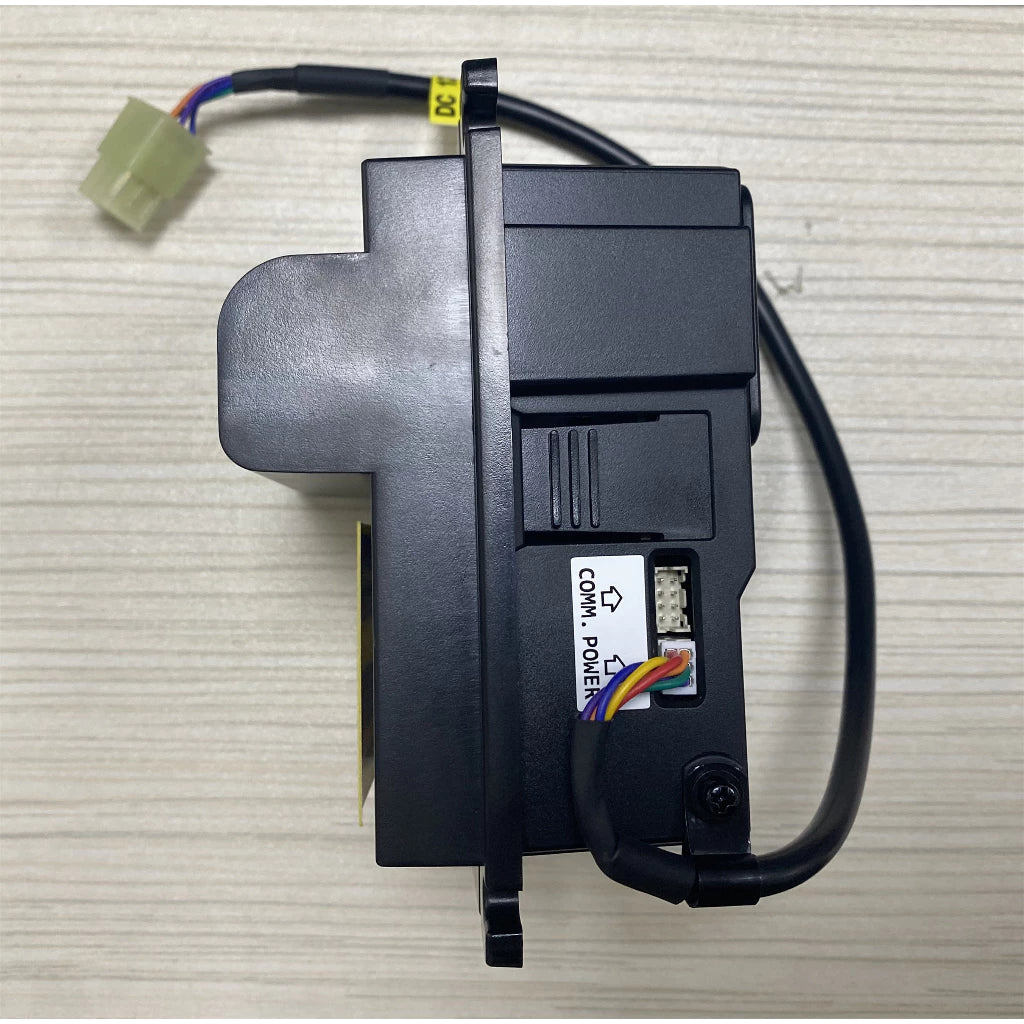

In normal case, only need to connect 4 wires.

-Red for 12V.

-Blue for pusle singal.

-Purple and orange for GND.

For the program device, will not need it in normal case.

Owner can use it for re-set or fix or update the software and program of the acceptors.

We have pre-set the Philippines / Malaysia program for clients, so buyers will not require to extra purchase the device for program in normal case.

-Can accept 1RM, 5RM, 10RM, 20RM, 50RM, 100RM six value cash for Malaysia.

-Can accept 20, 50, 100, 200, 500, 1000 six value cash for Philippines. (can read the ver.2025 money now).

-If want to reset, or update the software (According to the official), buyer can order a device directly to process.

-If the output pulse different than actual situation, our suggestion is check your firmware and check the acceptor dip #4 position "Slow Output Pulse", and check the voltage for acceptor. It should be 12V more or less. Too low or too high will effect the acceptor work.

Product Description:

TOP Bill Acceptor combines improved bill-sensing technology with lightweight and durable plastic construction. It also features

fast software updating, and easy maintenance to increase acceptance rates and reduce bill jammed.

It is suitable for Various Machines,such as amusement,gaming,kiosk,vending machines...etc.

Product Details:

1. bill insertion: 4 way acceptance

2. software can be quickly updated through the built-in connector (Flash ROM).

3. fixed width/multi-width bill acceptable

4. multinational currencies acceptable

5. new generation design of verification system

6. anti-string technology

7. lightweight and durable plastic construction

8. speedy bill transaction

9. selective interfaces

10. multicolor illumination bezel design

11. easy maintenance

12. fast program update

13. acceptance rate:96% or greater

14. interface available: pulse,RS232,RS232AO,ccNet (compatible),MDB

15. recommended applications: gaming,amusement,vending,kiosk

16. weight: 1.40KG

17. without stacker (bill box), if you need bill box, please choose TP70P5 model.

18. bill box capacity: No

19. bill accepted width:59mm-71mm

Environment:

1. operating Temperature : 0° C ~ 55° C

2. storage Temperature : -20° C ~ 70° C

3. humidity : 30%~85% RH ( no condensation )

Acceptance Rate:

96% or greater

The Following Bills Are Excluded:

1. Incomplete bills such as extremely dirty, wetted, broken or wrinkled ones.

2. bills folded at a corner or side.

3. incorrect-made bills.
